S-8000 Gas Control Panel
Gas Panel
Gas Control Panel

S-8000 Gas Control Panel

Categories
, , , , ,
Product Type
Brand
Tags
, ,

Overview

Protect Your Environment with the Advanced S-8000 Gas Control Panel

Ensure a safe and secure environment with the intelligent S-8000 Gas Control Panel, a robust RS485 signal controller designed for precise and reliable gas concentration detection. This comprehensive system empowers you to monitor various gases simultaneously, providing critical real-time data to safeguard your premises.

Use in conjunction with the BH-60, K-G60 Transmitters, or m-Power VOXI series. With a comprehensive range of gas sensor options available including flammable (%LEL), O2 and PID (VOC).

At the heart of the gas control panel is a powerful MCU control unit coupled with a user-friendly, large LCD touch screen for intuitive operation and clear visualization of gas levels. Partnered with high-sensitivity gas sensors, this system delivers rapid and accurate responses to potential hazards. Learn More.

The S-8000 Gas Control Panel provides immediate visual and audible alarms when preset gas concentration levels are reached or exceeded, ensuring timely awareness and enabling prompt action.4 Beyond alerts, the system can also be configured to automatically activate ventilation fans and other safety equipment, proactively mitigating the risk of accidents and explosions.5

Key Features:

  • Versatile Gas Detection: Connects to multiple detectors for simultaneous monitoring of various gases.
  • Intuitive Interface: Large LCD touch screen for easy configuration and real-time data display.
  • High-Performance Sensors: Delivers exceptional sensitivity and fast response times.
  • Dual Alarm System: Provides both visual (LCD screen and LED light) and audible warnings.
  • Automated Safety Response: Triggers ventilation fans and other equipment upon alarm.
  • Robust Connectivity: Features dual RS485 ports with support for MODBUS protocols for seamless integration.
  • Reliable Output: Three passive contact outputs (10A/250VAC or 10A/30vDC) for external device control.

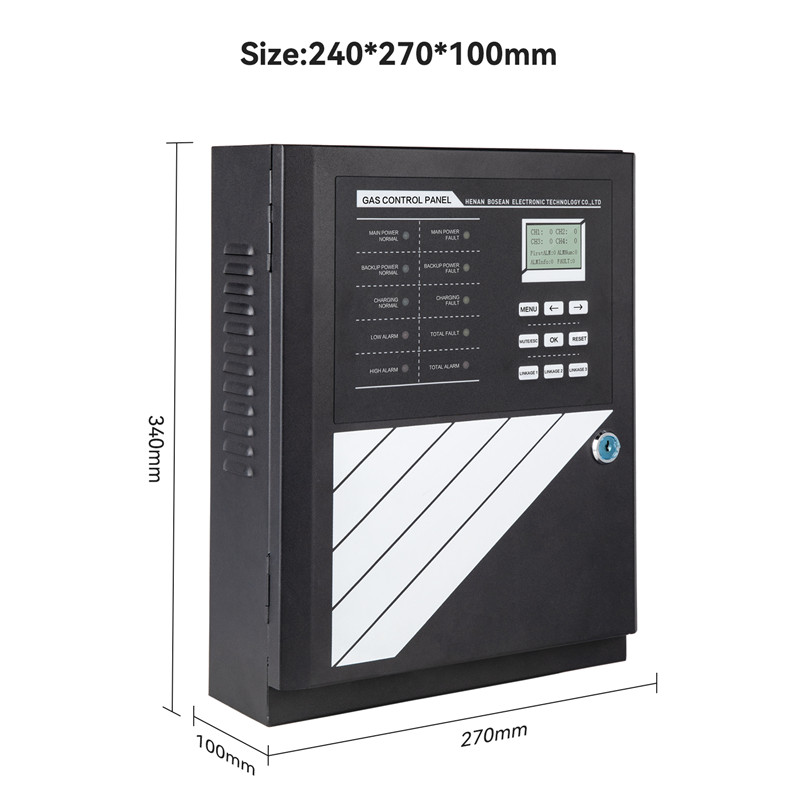

The S-8000 Gas Control Panel operates within a temperature range of 0~40℃ and humidity up to ≤95% (non-condensing). Its compact design and standard AC220V 50/60Hz voltage make it suitable for a wide range of industrial and commercial applications. Invest in the S-8000 Gas Controller for proactive gas safety management and peace of mind.

Add to quote

Technical Specs

Output:

  • Three groups of relay contact outputs (capacity: 10A/250VAC or 10A/30VDC)
  • Working Temperature: 0~40℃
  • Working Humidity: 0-95%RH
  • Output Supply Voltage: DC24V±6V
  • Installation Method: Wall-mounted

Additional Information:

  • The controller is programmable with simple setup and input options.
  • The relay output can be used to control a variety of peripherals, such as fans, shut-off valves, or audio-visual alarms.
  • The controller is non-explosion-proof and should be installed in a safe area.

Media

Product Brochure
