Revo™ Vibration Meter: Your Ultimate Solution for Hand-Arm Vibration Measurement
Overview
The Revo™ Vibration Meter is specifically designed to help you tackle Hand-Arm Vibration Syndrome (HAVS) and safeguard your workforce from the dangers of excessive vibration exposure.
What is the Revo™?
The Revo™ is a cutting-edge handheld vibration meter engineered for precise measurement of both hand-arm vibration and whole-body vibration. It provides a simple, convenient, and accurate way to measure, analyze, and assess vibration data, ensuring compliance with international standards, including ISO 5349 and European Directive 2002/44/EC. With the capability to measure four channels simultaneously, the Revo™ meets the stringent requirements of ISO 8041:2005.
Why is Hand-Arm Vibration Measurement Crucial?
Hand-Arm Vibration Syndrome (HAVS), also known as Vibration White Finger, is a serious and potentially debilitating condition caused by over-exposure to vibration from power tools, machinery, and vehicles. The HSE estimates there could be up to 5 million sufferers in the UK alone. The Revo™ Vibration Meter collects vital vibration data, empowering you to identify risks, implement preventative measures, and avoid HAVS in your workplace.
Key Features for Comprehensive Hand-Arm Vibration Assessment:
- Compliant with Regulations: Measures vibration in accordance with the Control of Vibration at Work Regulations 2005, ISO 5349, ISO 2631, and the EU Directive 2004/44/EC.
- 2-in-1 Functionality: Seamlessly measures both hand-arm vibration and whole-body vibration levels, offering versatile application.
- Four Independent Measuring Channels: Equipped with IEPE inputs and TEDS support for comprehensive data collection.
- User-Friendly Design: Easy to use with no complicated setup procedure, allowing for immediate and efficient measurements.
- Extensive Data Storage: Stores up to 10,000 measurements and 1,000 FFTS, each with date, time, and comments.
- Integrated Frequency Analysis (FFT): Provides detailed frequency analysis (125 lines for X/Y/Z) for in-depth understanding of vibration characteristics.
- Free Data Reporting Package: Includes software for easy analysis of data and professional reporting, simplifying your workflow.
- Quick Data Downloads: USB interface for fast and efficient data transfer.
- Daily Exposure A(8) Calculation: Software allows for A(8) calculation for different activities and test persons.
Technical Specs
Complete Vibration Measurement Kit:

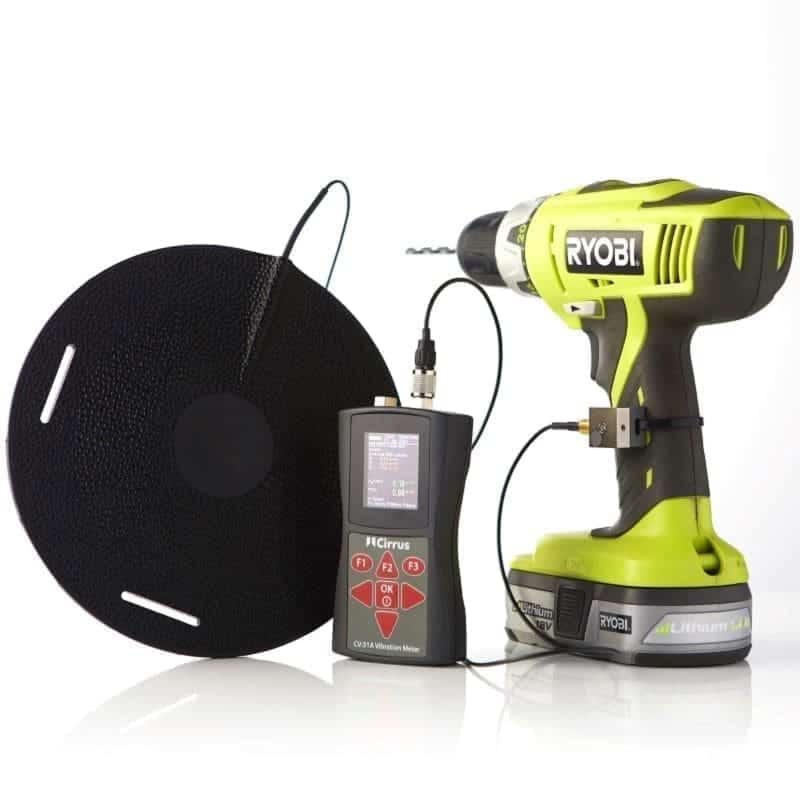

The Revo™ is typically supplied as a complete measurement kit, including all necessary accessories for accurate hand-arm vibration measurements. This includes handle mounts for the triaxial accelerometer, enabling easy attachment to handheld tools and equipment. A range of additional accessories is also available to expand its capabilities.
Technical Specifications:
- Standards: ISO 8041:2005, ISO 5349-1:2001, ISO 5349-2:2001
- Measurements: Interval RMS, vector sum, max, running RMS (MTVV), (Acceleration) vibration dose (VDV), Running RMS, maximum RMS, vector sum, peak value, maximum peak value
- Sensor Input: Acceleration, Velocity, & Displacement, Low-power IEPE, sensitivity 0.8-120 mV/ms²
- Channels: 4 low-power IEPE inputs with TEDS support (IEEE 1451.4, Template 25)
- Measurement Range:
- Acceleration: 800
- Velocity: 100-10000 mm/s
- Displacement: 250-15000 µm
- Frequency Range:
- Acceleration: 0.1-2000Hz/1-1000Hz
- Velocity: 1-100Hz/2-1000Hz/10-1000Hz
- Displacement: 5-250Hz
- Weighting Filters: Wb, Wc, Wd, Wh, Wj, Wk, Wrn. Unweighted: 6.3Hz-1259Hz (H/A)/0.4Hz-100Hz (G/K)
- Display: Colour OLED
- Power: 3 x AAA alkaline LR03 (Typically 10-14 hours’ operation)
- Dimensions (without connectors): 125 mm x 65 mm x 27 mm
- Weight: 140 g
